This time, let's take a look at some nuances related to reset.
The signal every design has, and the one almost nobody designs carefully. 🤔
Ask most engineers how they handle reset and you'll hear "tie it to every flip-flop." Technically true. Also the fastest way to ship a bug that only shows up in the lab, under load, months later.
⚡ Concept of the Week: Asynchronous Assertion, Synchronous De-assertion
Start with what a flip-flop's reset actually controls. While reset is asserted, it holds the output at a known value — 0 or 1, depending on the flip-flop. The moment it de-asserts, control hands back to the clock edge.
That handoff is the whole problem.
If de-assertion lands too close to a clock edge, the flip-flop can go metastable — same failure mode as any other timing violation, except this one shows up once, at power-up or after a reset pulse, and is brutal to reproduce.
Two timing checks govern that handoff:
1️⃣Recovery time — reset must de-assert with enough margin before the next active clock edge.
2️⃣Removal time — reset must stay asserted long enough after a clock edge, if it happens to land near one.
Neither is setup or hold. They're reset's own version of the same problem, and most timing reports bury them.
Here's the asymmetry that actually matters.
Assertion has no timing requirement — it needs to happen immediately, irrespective of the clock edge, any time, because the thing forcing a reset (power glitch, external button, watchdog) doesn't wait for a convenient clock edge.
De-assertion is the opposite: it needs to be clean and synchronous, or you've just traded a known problem (something needs resetting) for an unknown one (metastability, maybe, somewhere, eventually).
So: assert asynchronously, de-assert synchronously. Always.

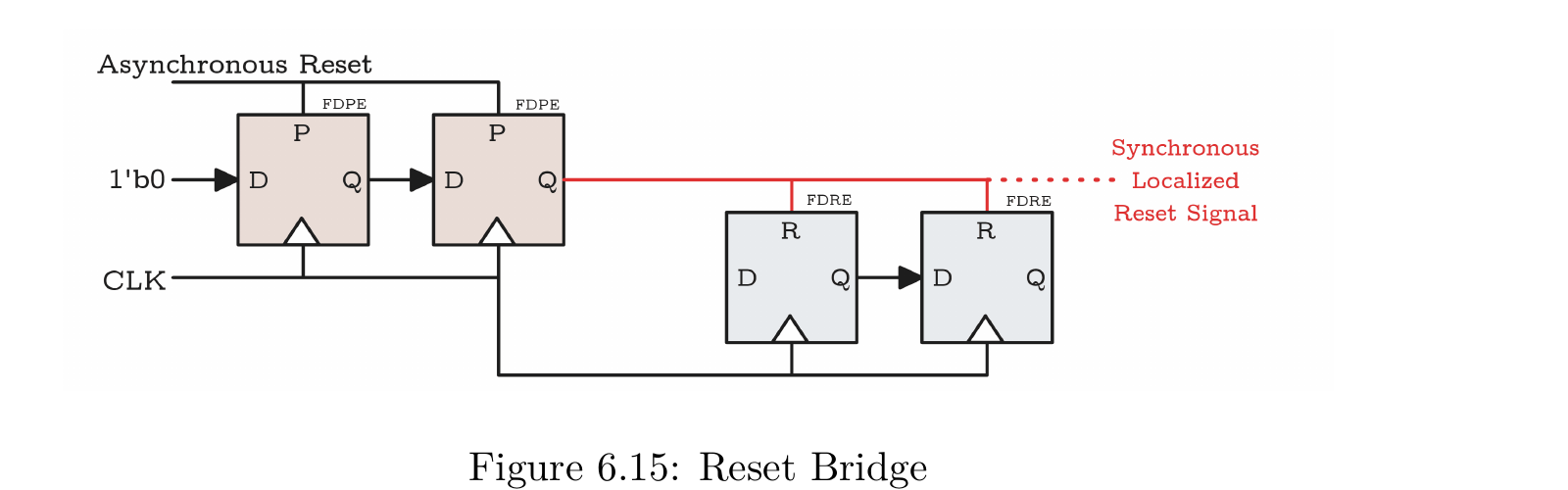

The standard way to build that is a reset bridge — a short chain of flip-flops using FDPE (async preset) and FDRE (sync reset) primitives. The async input presets the whole chain to 1 instantly. Once the async reset releases, the 1s ripple out one per clock, and the last flip-flop's transition to 0 is what releases your logic — fully synchronous to that domain's clock. Chain length sets your reset pulse width; two or three flip-flops is typical.
The part people miss: in a multi-clock design, that's one reset bridge per clock domain, not one global reset trying to serve all of them. A reset synchronized to clock A tells you nothing about metastability risk on clock B's flip-flops. (Book: Ch6 §6.13, pp.295–299.)
🎯 Interview Question of the Week
Q: "Why do you assert a reset asynchronously but de-assert it synchronously? Isn't a fully synchronous reset simpler?"
Here's how you should approach this question: don't just recite the rule. Explain the asymmetry.
Assertion has to react instantly to something that isn't clock-aligned (power glitch, external reset pin). De-assertion has to be clock-aligned or you risk metastability on release.
A fully synchronous reset can miss a narrow async assertion pulse entirely if it doesn't line up with a clock edge — that's the failure mode interviewers are checking you know.
🧩 Design Question of the Week
Design n module to generate an interrupt based on the information provided.
AXI-Stream interface.
Packets arrive at any rate, any size, TLAST marks the boundary.
Generate an interrupt if an incoming packet exactly matches — same size, same contents — any of the last 10 packets seen.
What do you store? What do you compare it against? And when — mid-packet, or only once TLAST arrives?
Give it a shot. If anything about the problem statement is unclear, or you want to talk through your approach, just reply — I read every email and I'm happy to help.
